Over 25,000 bridges across Germany fall into the accountability of the 13 employees in the bridge monitoring department at DB InfraGO AG. An intense task and extreme responsibility. Supported by ASC Sensors’ expertise, the DB bridge experts are currently working on an innovative pilot to make the monitoring and proactive maintenance of critical railroad bridges simpler, safer and more cost-effective in the long term.

Spontaneous measuring usually interrupts rail and road traffic

"As soon as a system operator or bridge inspector on site notices an unusual change to a structure, or merely suspects one – we are notified," reports engineer Peter Krempels, team leader of the measurement unit at DB InfraGO.

The measurement team then moves out to the affected structure with the required equipment. In order for conventional laser monitoring to be carried out at relevant measuring points, sometimes difficult terrain has to be overcome, such as heavy vegetation, riverbeds or rocky mountain slopes.

Minimizing or preventing operational interruptions

Bridge measurement is always complex. It requires time, qualified staff, extensive material and often widely laid out cables. "Everything we do has an impact on regular operations," says the measuring expert. "In the case of railroad bridges, the entire traffic of the crossing partner underneath usually has to be blocked for taking measurements from below."

This is the case not only during the actual measurement work: In case of acute risk to the stability and/or operational safety of a structure, the bridge should be closed immediately until the suspicion has been dispelled by a measurement-based recalculation – or suitable repair has been completed.

"Following the examination, the operator receives a detailed report with technical recommendations for the continued safe operation of the bridge," explains Krempels. In extreme cases, this can lead to the demolition and reconstruction of an unstable structure. "With older bridges in particular, this can lead to expensive, long-term interruptions to operations. We want to minimize or prevent these through an innovative new measurement concept using smart sensor technology, which we are currently testing in a pilot project with ASC."

Smart, flexible sensor technology enables continuous monitoring

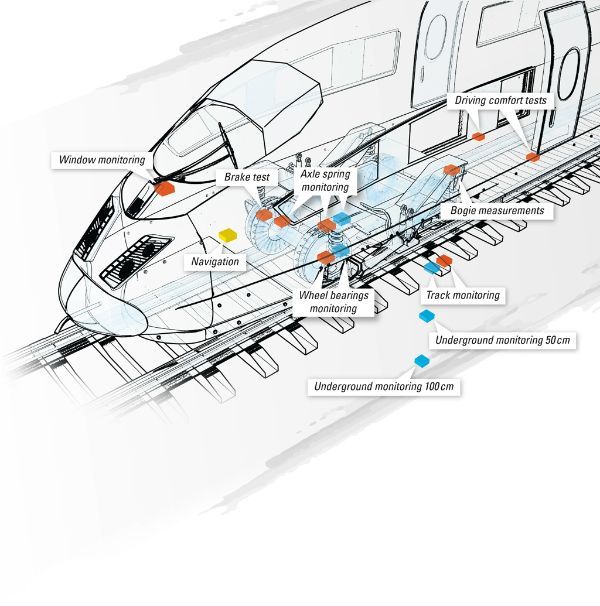

To that end, smart sensor systems of the ASC AiSys^® ECO series are specially tailored to the diverse conditions of a wide range of bridge structures. Apart from the materials used, the type of construction, its length and many other factors play a role.

"No sensor model covers all requirements. The flexible configuration of sensor systems is therefore an advantage."

"ASC's innovative MEMS-based accelerometer system offers a complementary approach to traditional reference-based monitoring methods," says ASC development engineer Esey Gebreyesus. “By providing accurate, real-time dynamic displacement measurements, our system enhances the monitoring toolkit without need for fixed reference points. This feature simplifies installation and increases measurement flexibility, making it a valuable addition to the existing methodologies.”

A key indicator of the condition of a railroad bridge is its deflection. This serves as the basis for the structural calculation of the load-bearing capacity. "If, after decades of use, the standard deflection under the same train set at the same speed increases from 1.5 to 1.7 millimetres, then you have to find out why," says Krempels. "It could be a consequence of the outside temperatures or the train load ... but it could also be the onset of material fatigue."



Conventional laser measuring methods offer a direct but very complex method for recording static and dynamic deflection. In addition, it is first necessary to estimate when and where measurements are required. The teams of ASC and DB InfraGO are collaborating on an alternative, to continuously monitor structures in question going forward.

Distinct sensor properties and automated data integration

Dynamic displacement monitoring plays a critical role in assessing the health and safety of bridge structures. Unlike static displacement, which measures changes in position under constant loads or conditions, dynamic displacement captures how a bridge reacts to variable forces such as traffic, wind, seismic activity, or temperature changes.

Installed at defined measuring points, the sensor systems are designed to permanently monitor all relevant parameters and continuously analyze them in a multi-stage process. "Due to its properties specially designed for bridge monitoring, ASC's smart sensor technology is particularly suitable for the complex requirements of dynamic displacement monitoring," says Gebreyesus. These properties include:

• High-frequency data sampling
• Adaptive real-time DC offset removal
• Advanced filtering and decimation
• Double integration and drift correction
• Phase correction and artifacts removal

·      Integrated processing and data output

In the future, material expansion and other factors will be calculated algorithmically during train passage, and a complete picture of all changes taking place in the structure will be derived. This enables to detect even the smallest signs of change in the substance of the structure, and to report them immediately.

Automated data integration of ASC’s smart sensor systems is crucial for this to work. "Not only should this enable us to have the results available in real time, but also to receive appropriate alerts and actions instantly," says Krempels. This is a major advantage for engineers who, with conventional laser methods, would still have to invest a lot of time in analyzing results, meeting to discuss the gained insights and develop recommendations for action.

Real-time monitoring increases safety and service life

As a condition for reliable, economical long-term monitoring of a building, an exact overall picture of the current condition is first required. This requires a system measurement with a large number of measuring points. Only then can meaningful measuring points be determined that can serve as a reference basis for permanent monitoring in the future.

"Conditions are different for each individual bridge. That's why our test pilot jointly with ASC is critical in order to learn to correctly assess all influencing factors before we go into broader application," says Krempels. The preparatory work for the constant monitoring of an affected structure can, therefore, take over a year’s time and involves a high initial outlay, but which is soon compensated by significantly lower running costs and, above all, should result in a considerable risk reduction.

One challenge is to keep measurements stable despite a wide range of rapidly changing loads – regardless of train weight, speed, centrifugal forces, climate changes and so on. "This is another reason why we need reliable sensors of maximum precision and long-term stability," says Krempels.

Flexible partnership

DB InfraGO's bridge monitoring team has been in contact with ASC’s sensor specialists for around two years. Monitoring over 25,000 bridges of a wide range of constructions, conditions and stresses is a complex task. "In order to select the 'right' bridges for economical long-term monitoring and then switch over from conventional spontaneous measurements, we have been conducting intense tests with ASC AiSys ECO accelerators for some time," explains Krempels. "These test series have recently been very successful, so that we can now decide on next steps."

"For this innovation in rail bridge monitoring, we were looking for a competent partner who not only had a flexible range of high-quality digital and smart inertial sensor solutions, but was also willing to go down this new path with us," recalls Krempels. For example, other suppliers would not be prepared to adapt their standard sensors specifically for our pilot project, adapt software to individual needs or produce small quantities for our test series. "ASC has been able to respond to all our requests so far, has proven to be a flexible partner and invested a lot of time in understanding our requirements and implementing them jointly, despite the small quantities."
